Archived modelHistorical specification · Not representative of current U.S. production

SPECIALIST VEHICLE · Electric Industrial Vehicles

High-Pressure Cleaning Vehicle

Name: High-Pressure Cleaning Vehicle
Brand: JSH

Dual-Powered Cleaning Truck with 1300L Tank & Precision Spraying. Available in electric or fuel versions, designed for industrial and municipal cleaning tasks.

Request product information View details

PerformanceDimension(mm) · 4150*1400*2000

Front/Rear Track Width (mm)1220/1220 · Wheelbase(mm) · 2150

Minimum Ground Clearance(mm)150 · Cargo Dimension(mm) · 2400*1400*1300

Kerb Weight(Kg)1500 · Range (Full-Load under flat road condition) · l 50 ~ 60 Km (Standard Battery) l 120 ~ 150 Km ( Advanced Battery)

Original model information

Built around the application.

The original JSH model information is preserved below in a cleaner, easier-to-compare format.

Dual-Powered Cleaning Truck with 1300L Tank & Precision Spraying. Available in electric or fuel versions, designed for industrial and municipal cleaning tasks.

l 50 ~ 60 Km (Standard Battery)

l 120 ~ 150 Km ( Advanced Battery)

5,000W AC Motor

AR Pump + 9-Nozzle Front Spray + Left & Right Spot Sprayers

Historical technical data

Archived product specifications.

Values below reproduce historical information for this model and do not describe current U.S. production. Confirm any required configuration with JSH.

PerformanceDimension(mm) · 4150*1400*2000

Front/Rear Track Width (mm)1220/1220 · Wheelbase(mm) · 2150

Minimum Ground Clearance(mm)150 · Cargo Dimension(mm) · 2400*1400*1300

Kerb Weight(Kg)1500 · Range (Full-Load under flat road condition) · l 50 ~ 60 Km (Standard Battery) l 120 ~ 150 Km ( Advanced Battery)

Gradeability15% · Maximum Speed · 30 Km/h

Electric SystemStandard Controller · Curtis AC Controller · Standard Battery · 72V 200Ah LiFePO4

Advanced ControllerGTAKE AC Controller · Advanced Battery · 96V 200Ah LiFePO4

Standard Motor7.5KW AC Motor · Advanced Motor · 15KW Permanent Magnet Synchronous Motor

Charging Time6~8 hours to fully charged · Charger · Built-in onboard charger

BodyVehicle Body · Cathodic E-coating for Whole Vehicle Body · Dashboard · LCD Dashboard

Lights and signalsHeadlights, Front & Rear Turn signals, Rear Combo Lights, Horn · Auxiliary · Reversing Camera

WindshieldLaminated Glass · Gear Shifter · Shifter style

ChassisPowertrain System · Rear-wheel Drive · Steering System · Recirculating ball steering with EPS

Front Axle & SuspensionIntegral front axle · Rear Axle & Suspension · Integral rear axle with main reducer and differential; plate spring non-independent suspension

Braking SystemHydraulic brakes + vacuum assist, with parking brake device · Tyres · 165/70 R13C Tubeless Tyres

Washing Function (Available in Fuel or Pure Electric Version)Tank (L) · 1300 · Fuel Version · 13HP GX390H1 Engine Unit / Electric Start + Recoil Start / 9-Nozzle Front Spray + Left & Right Spot Sprayers

Electric Version5,000W AC Motor AR Pump + 9-Nozzle Front Spray + Left & Right Spot Sprayers

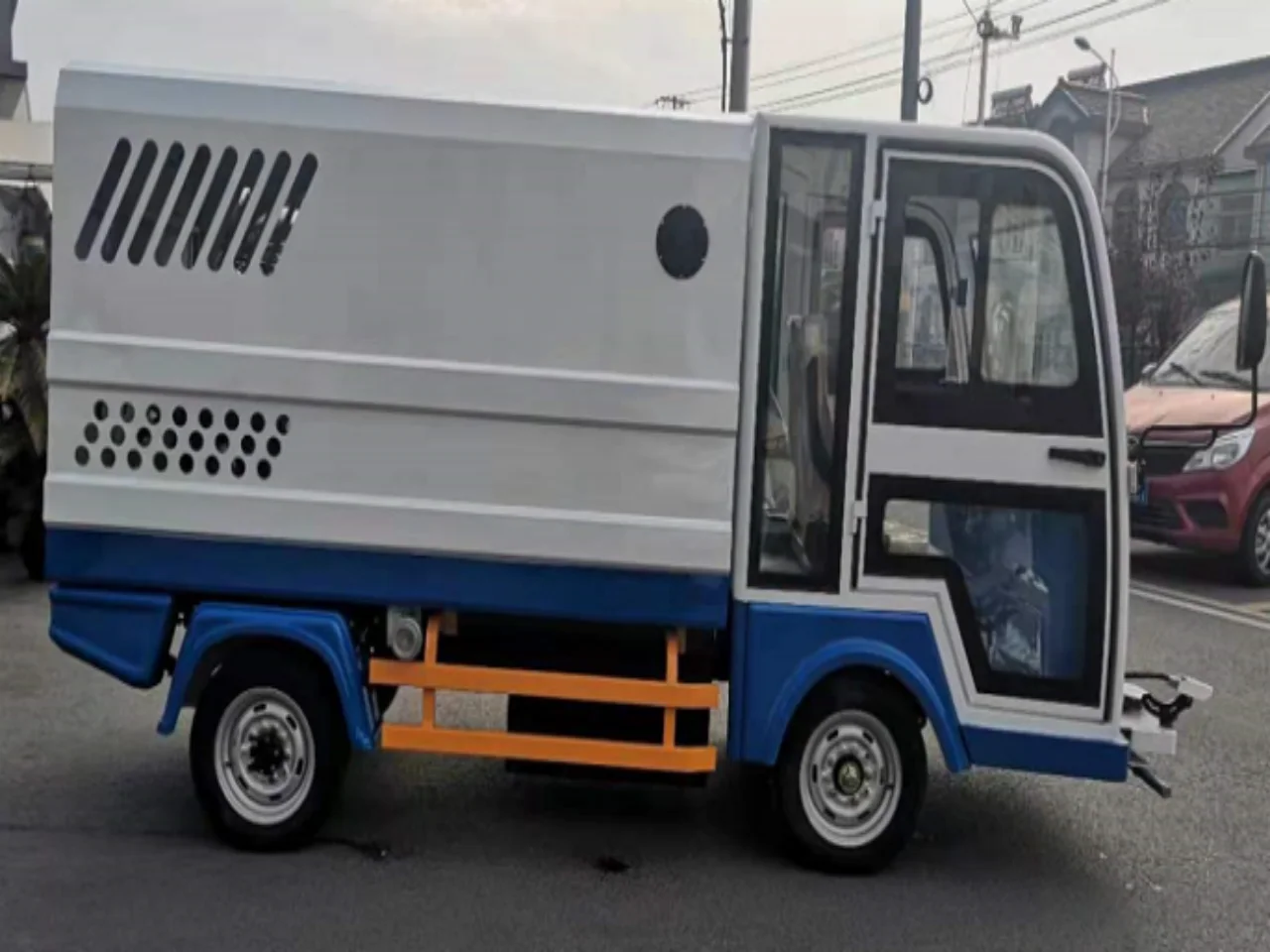

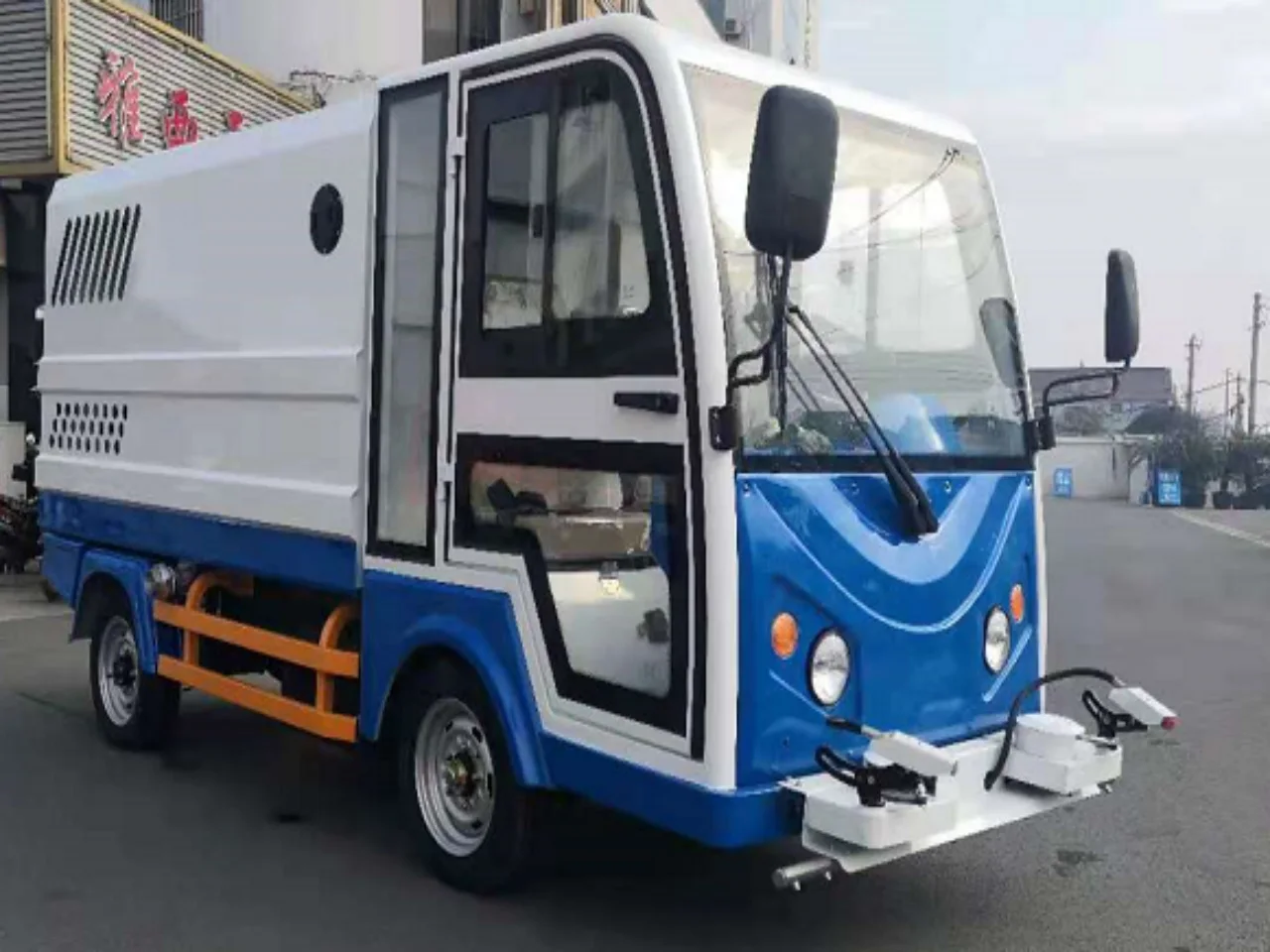

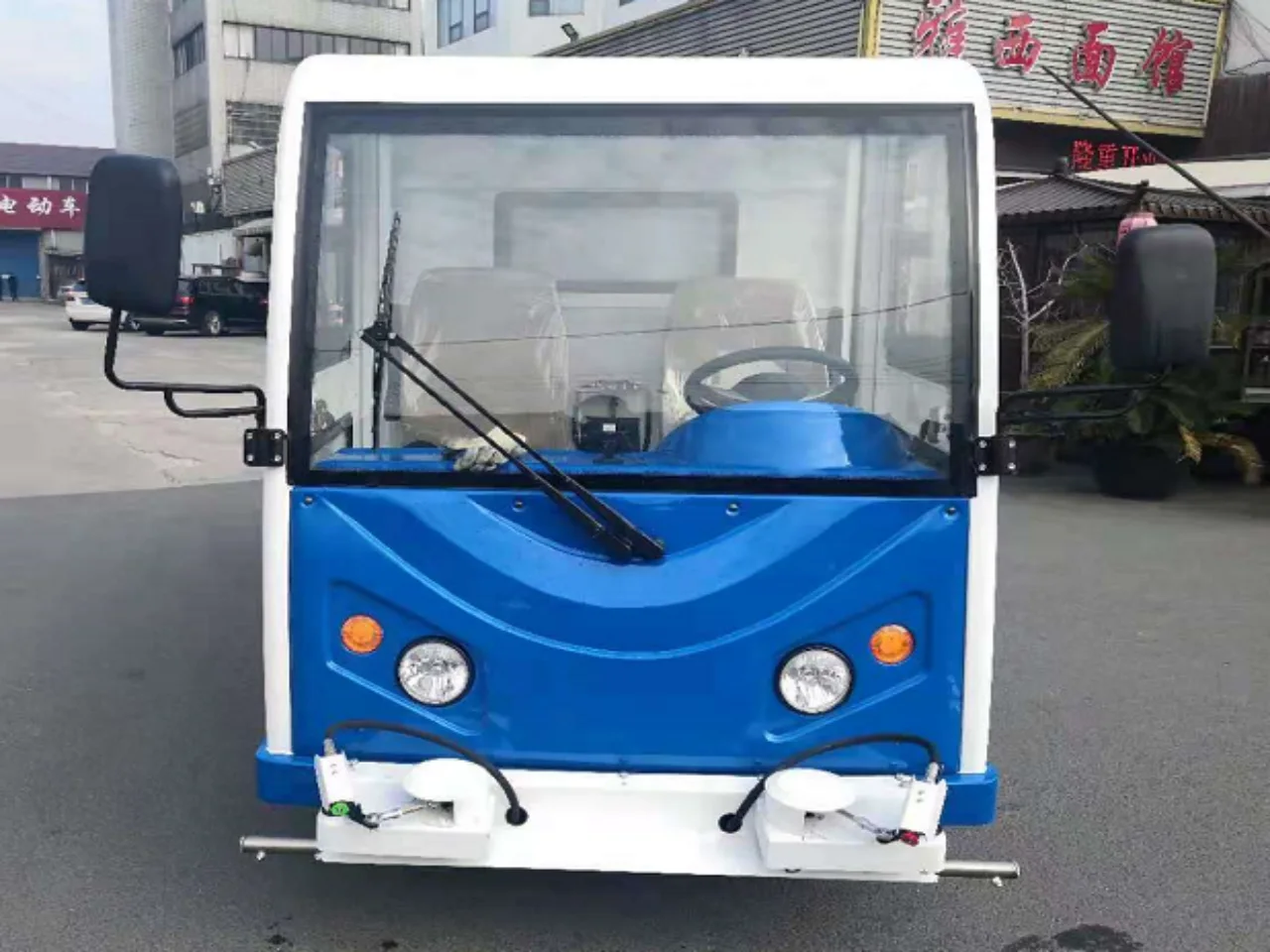

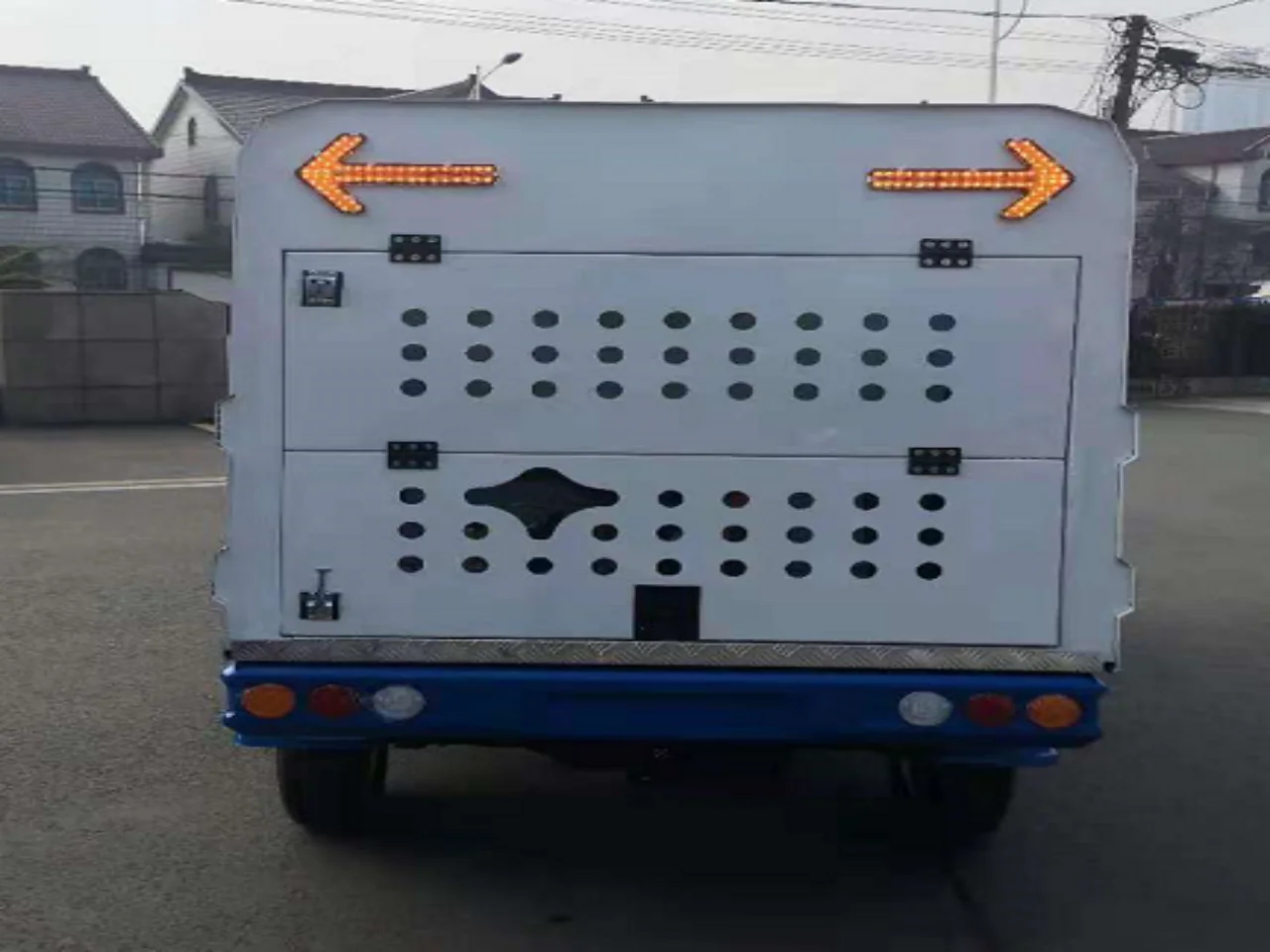

Verified vehicle photography
