SPECIALIST VEHICLE · Electric Industrial Vehicles

Towing Tractor

Name: Towing Tractor
Brand: JSH

2 steats Lithium Battery Powered Lifted Electric Off Road Tractor, 72V AC system, 4KW/5KW AC motor, 115Ah Lithium Battery, front MacPherson Independent suspension, front disc brake, LED lights, digital meter, 13′ aluminum rim, sports steering wheel...

Request product information View details

PerformanceDimension (L * W * H) (mm) · 3000*1500*2050 · Towing Capacity (1000Kg) · 8

Front/Rear Track Width (mm)1310 · Wheelbase (mm) · 1985

Minimum Ground Clearance (mm)150 · Net Weight · 900 Kg

Range (Fully Load under Flat Road Condition)60 ~ 70 Km · Maximum Speed (Km/h) · 28 Km/h

Original model information

Built around the application.

The original JSH model information is preserved below in a cleaner, easier-to-compare format.

Technical data

Product specifications.

Values below reproduce the technical information published for this model. Confirm the final configuration with JSH before ordering.

PerformanceDimension (L * W * H) (mm) · 3000*1500*2050 · Towing Capacity (1000Kg) · 8

Front/Rear Track Width (mm)1310 · Wheelbase (mm) · 1985

Minimum Ground Clearance (mm)150 · Net Weight · 900 Kg

Range (Fully Load under Flat Road Condition)60 ~ 70 Km · Maximum Speed (Km/h) · 28 Km/h

Electric SystemController · GTAKE Controller · Battery · 96V 100Ah LiFePO4

Motor96V 15KW PMS Motor · Charger · Built-in On-board Charger

Charging Time3.5 Hours

BodyVehicle Body · Cathodic E-coating for Whole Vehicle Body · Dashboard · LCD Dashboard

Lights and signalsHeadlights, Front & Rear Turn signals, Rear Combo Lights, Horn · Gear Shifter · Shifter style

WindshieldOrganic Glass

ChassisPowertrain System · Rear-wheel Drive · Steering System · Recirculating ball steering with EPS

Front Axle & SuspensionIntegral front axle · Rear Axle & Suspension · Integral rear axle with main reducer and differential; plate spring non-independent suspension

Braking SystemHydraulic brakes + vacuum assist, with parking brake device · Tyres · Solid Tire 7.00-12

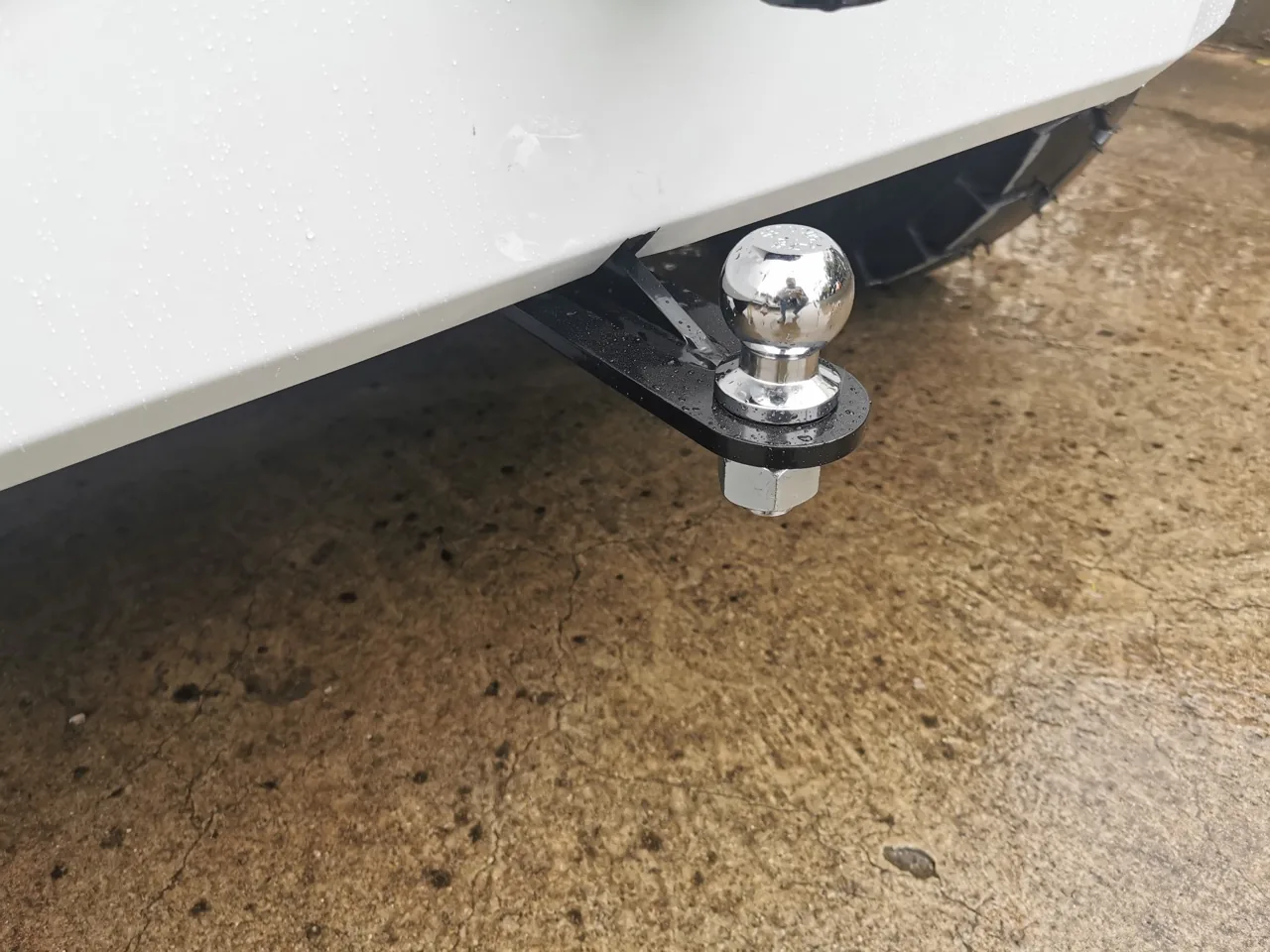

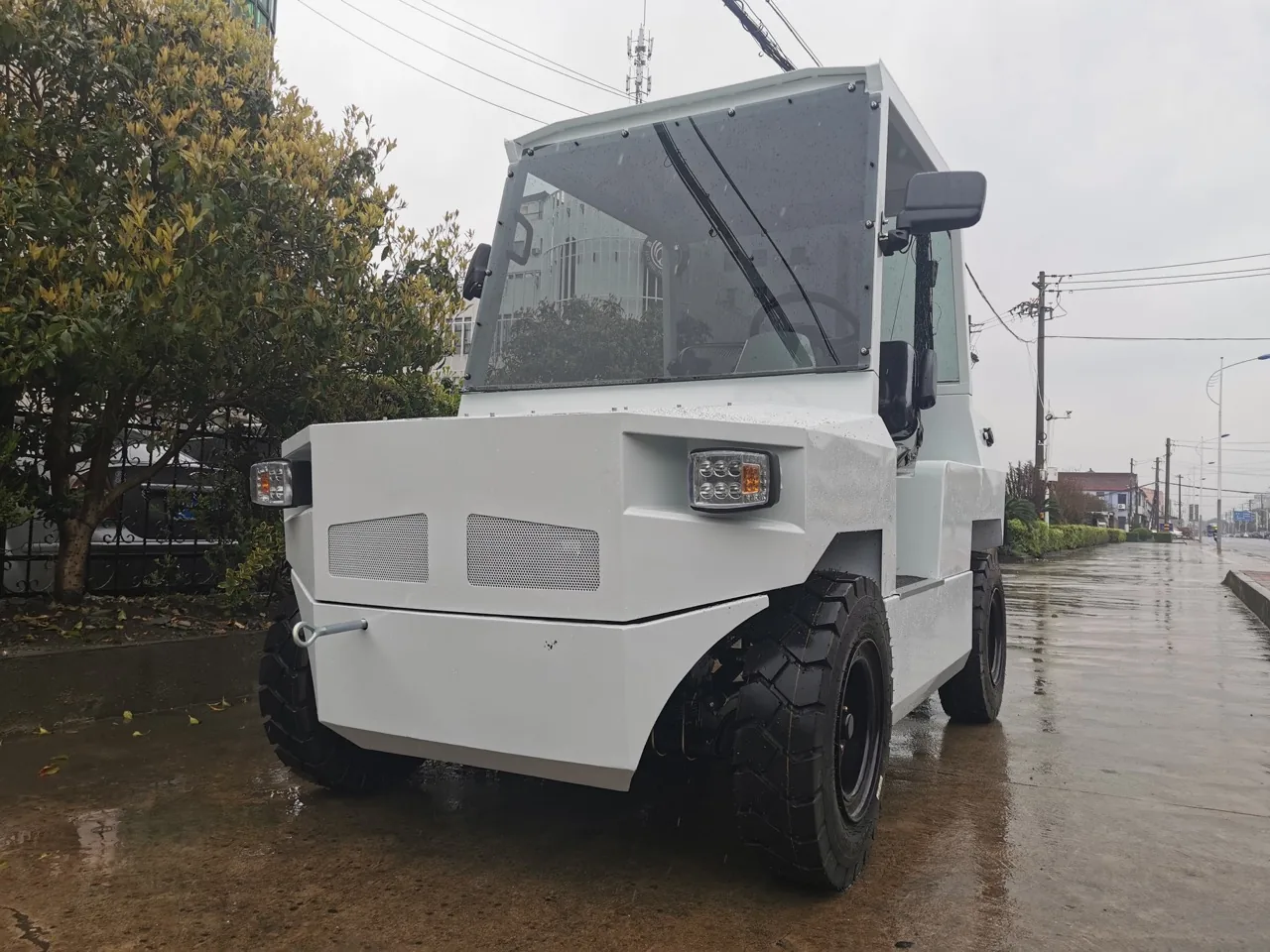

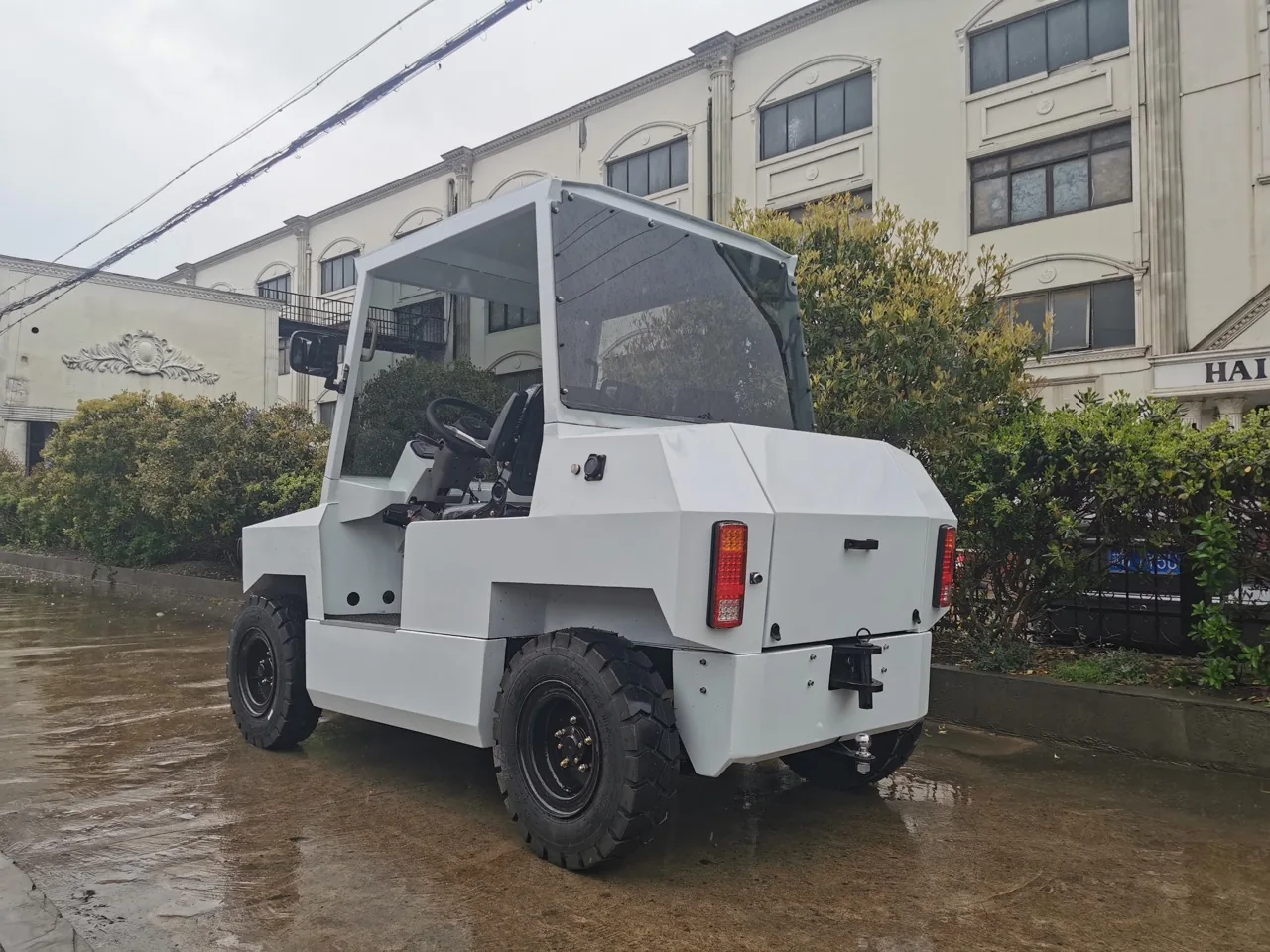

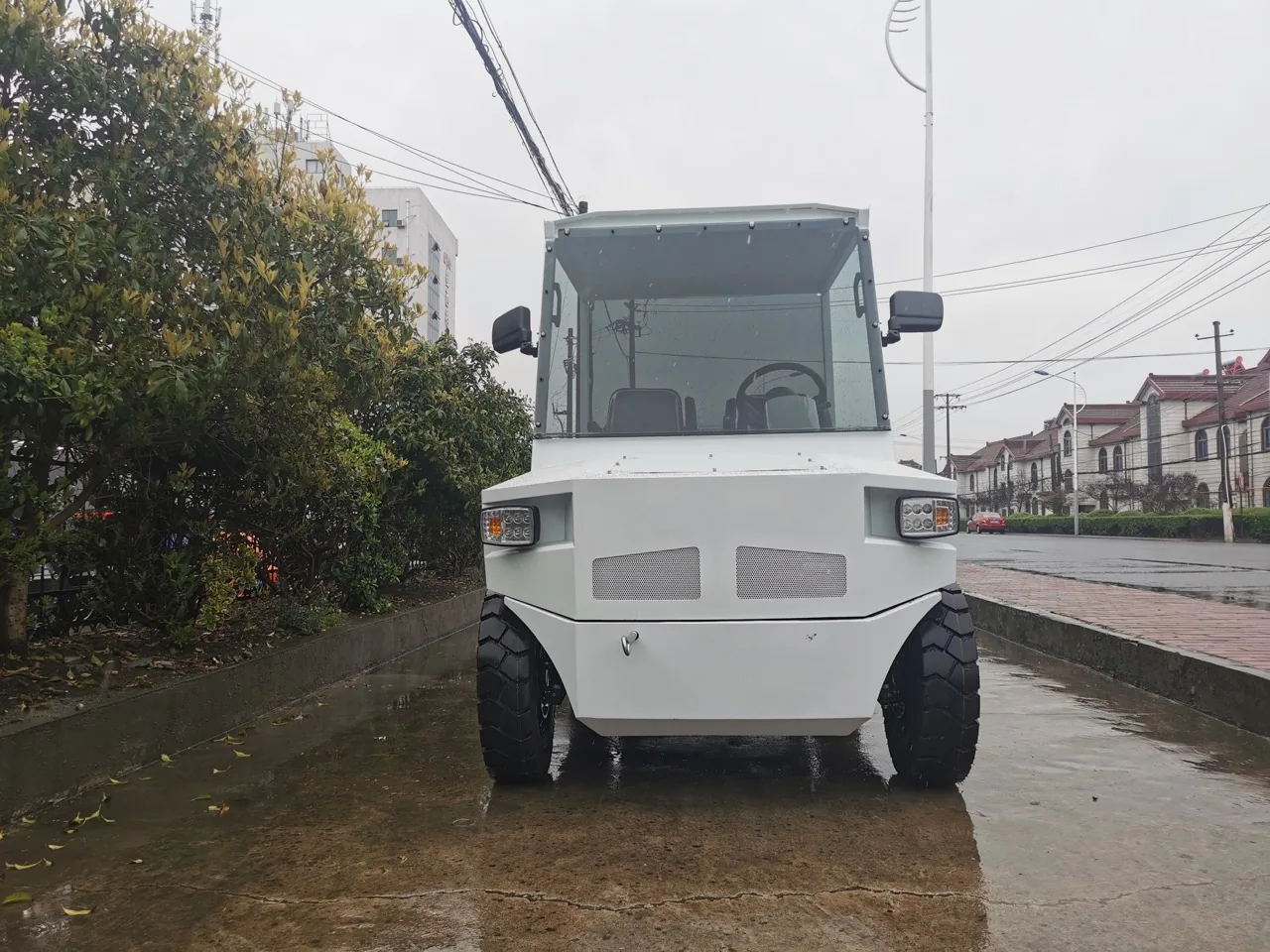

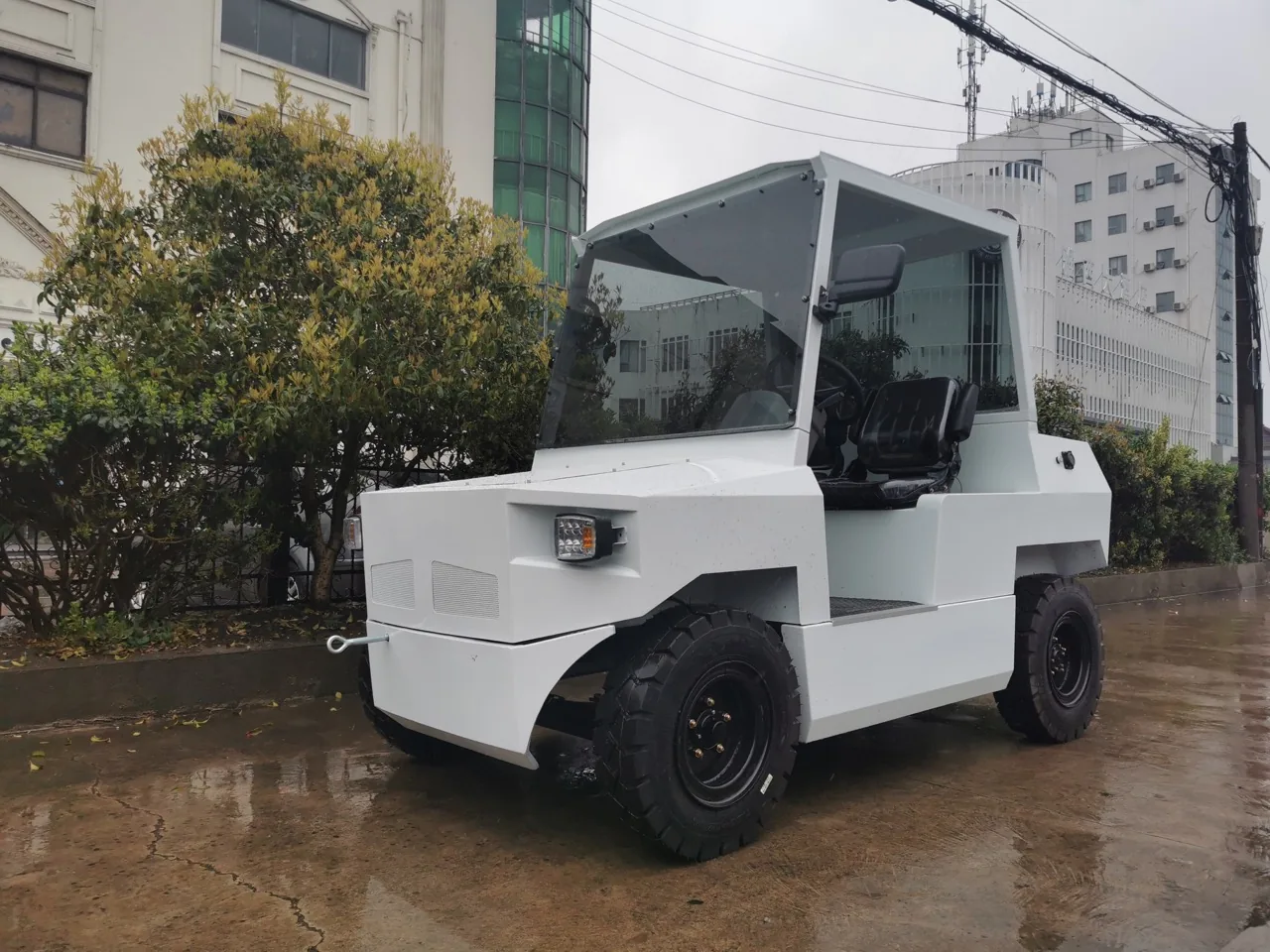

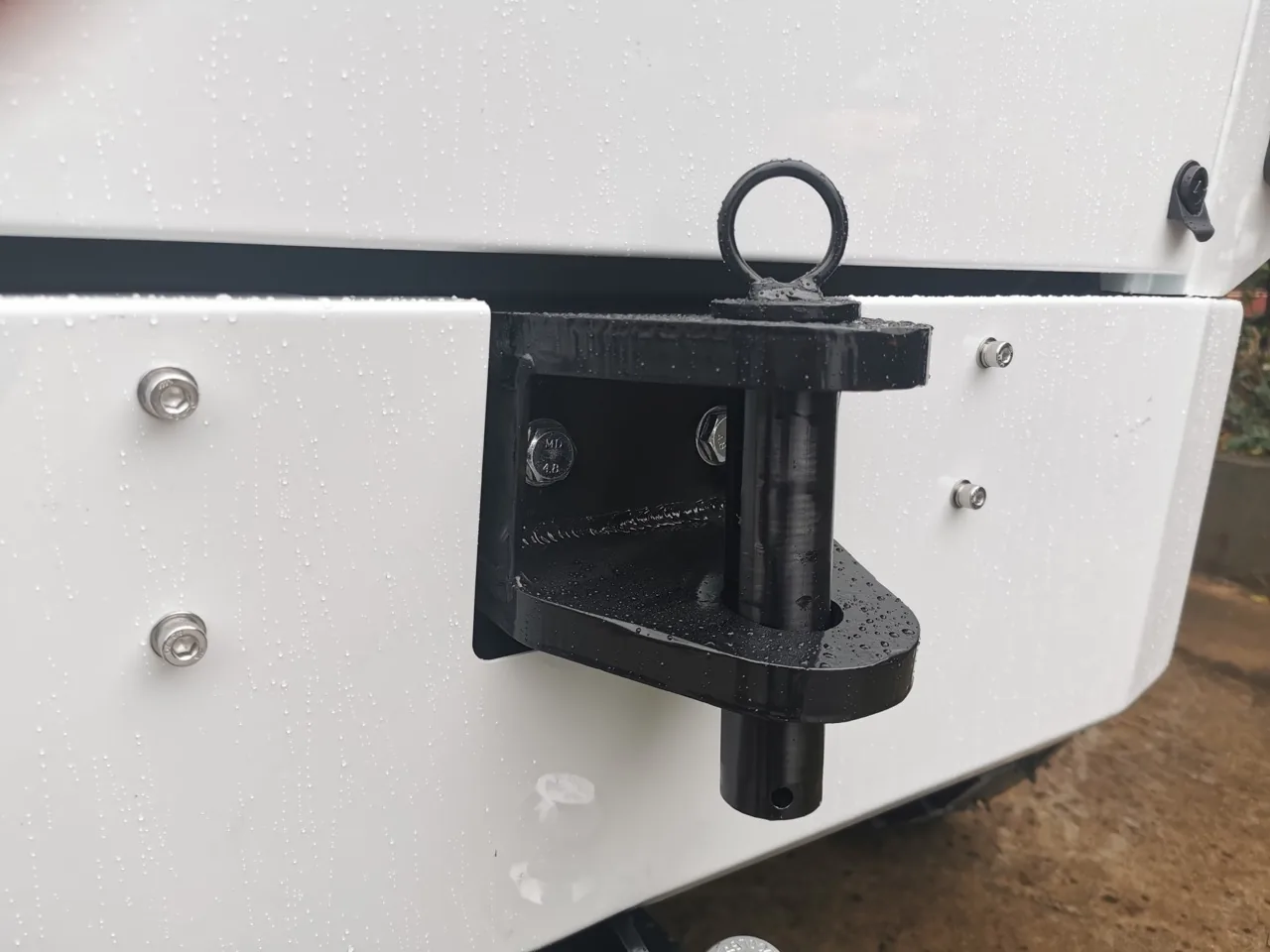

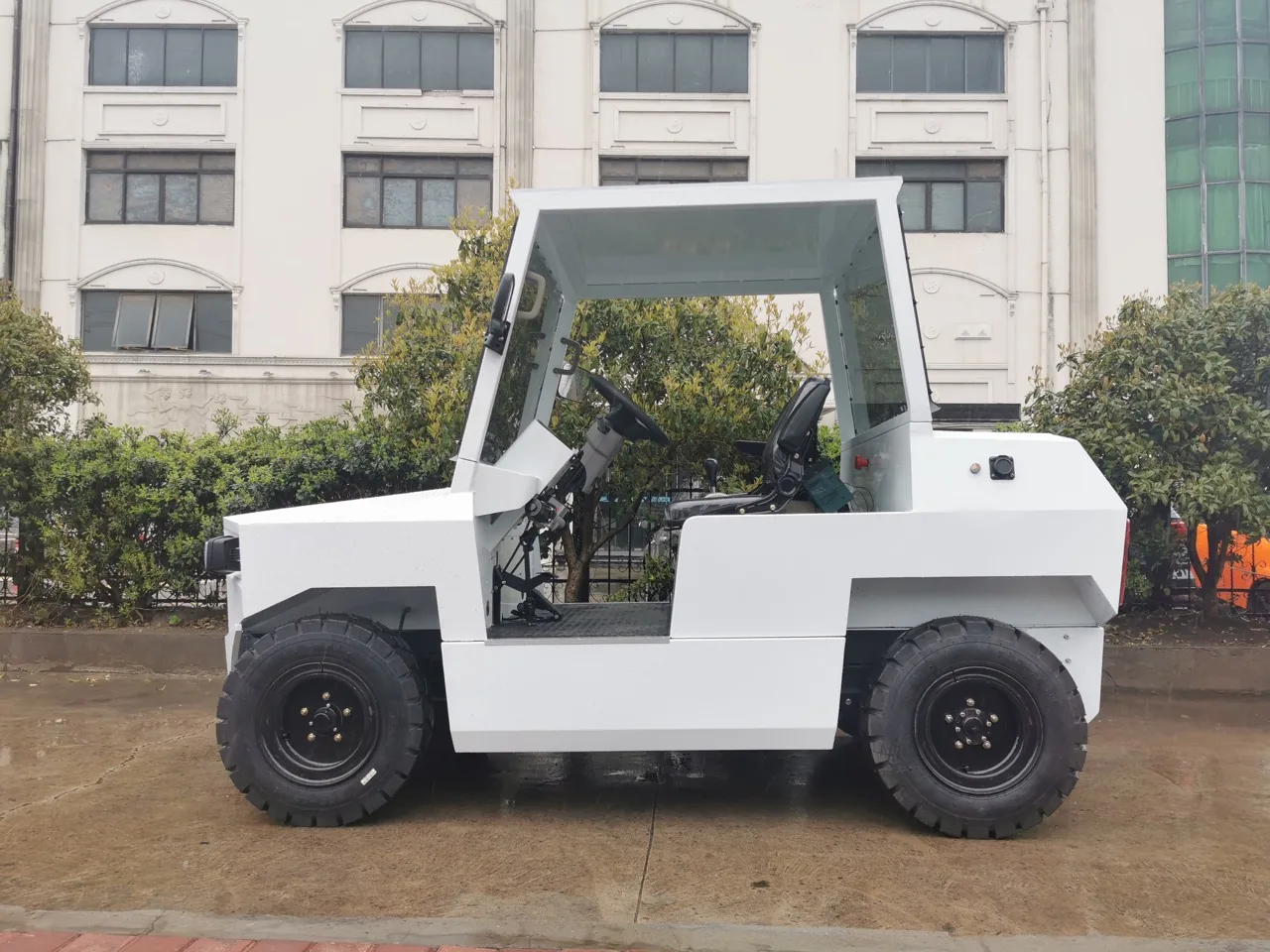

Original vehicle photography
